The sporty all-rounder
He is lightweight. He forgives mistakes. And he offers flying fun – not only for mountaineers and cross-country pilots.
If you are preparing for the launch with your Raqoon, you know that it doesn’t take much to start, because this is what the Raqoon was designed for. With its hybrid properties, it starts with 30% less wind and running. The control phase becomes easier. Its properties in the air also help you: with its lighter canopy it wants to lead you into the thermals.
Whether in gliding or thermals: thanks to the latest technologies such as HPCD, PPN and BGS, the RAQOON offers flight characteristics that were previously only known from the competition class – and this in the EN-A segment.
Its launch behaviour is extremely simple and good-natured. Even in zero wind, the lightweight canopy reliably climbs above the pilot with little effort. In addition, the RAQOON’s excellent low-speed flight characteristics allow a low take-off speed, allowing you to maintain a longer control phase at take-off.
The RAQOON is based on the latest findings of flow simulation. Complex calculations of the High Pressure Crossport Design (HPCD) not only reduce weight, but also maximize cross-ventilation of the Crossports. The efficiency of the system is already evident in the lifting phase. It provides a very fast pressure build-up and gives the wing a balanced internal pressure during flight. The 3D-shaping and optimized wing prestressing ensure perfect airflow, while the Precision Profile Nose System (PPN) ensures optimum airflow to the profile. Miniribs and the Brake Gathering System (BGS) help the profile achieve greater shape fidelity at the rear edge and transfer control impulses precisely to the wing. A very straightforward line concept with just a few main lines ensures easy handling and a good overview for ground handling. The risers are equipped with the Pilot Assistant (PAS) – in addition to the colour markings, icons provide a better orientation of the line levels.
Only high-quality durable materials were used for the material mix. When it comes to porosity, the lightweight material with double coating is clearly superior to heavy materials. This is now confirmed by long-term results and thus refute the myth that heavier materials should achieve better check results.

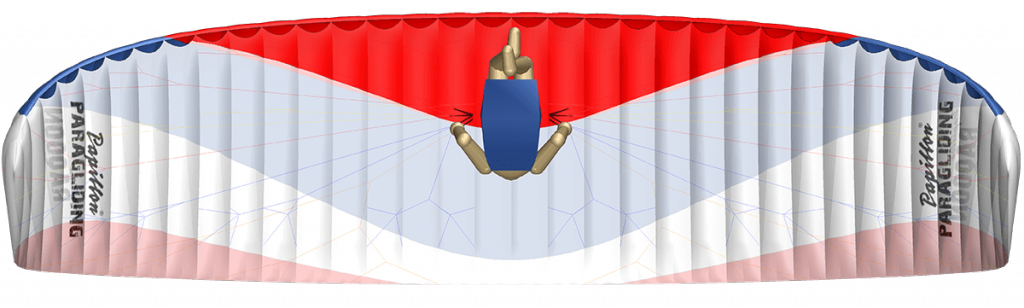

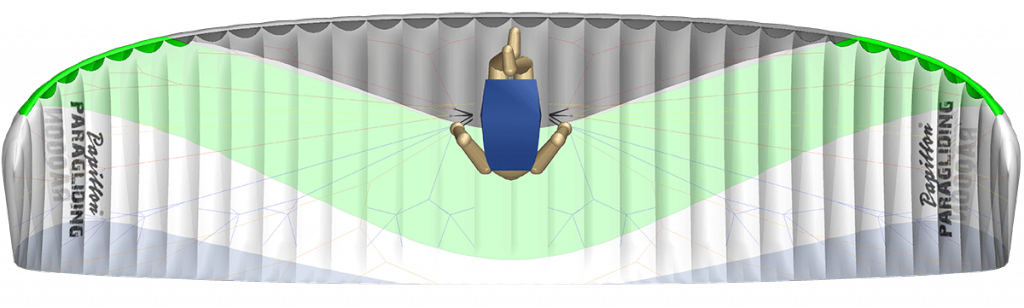

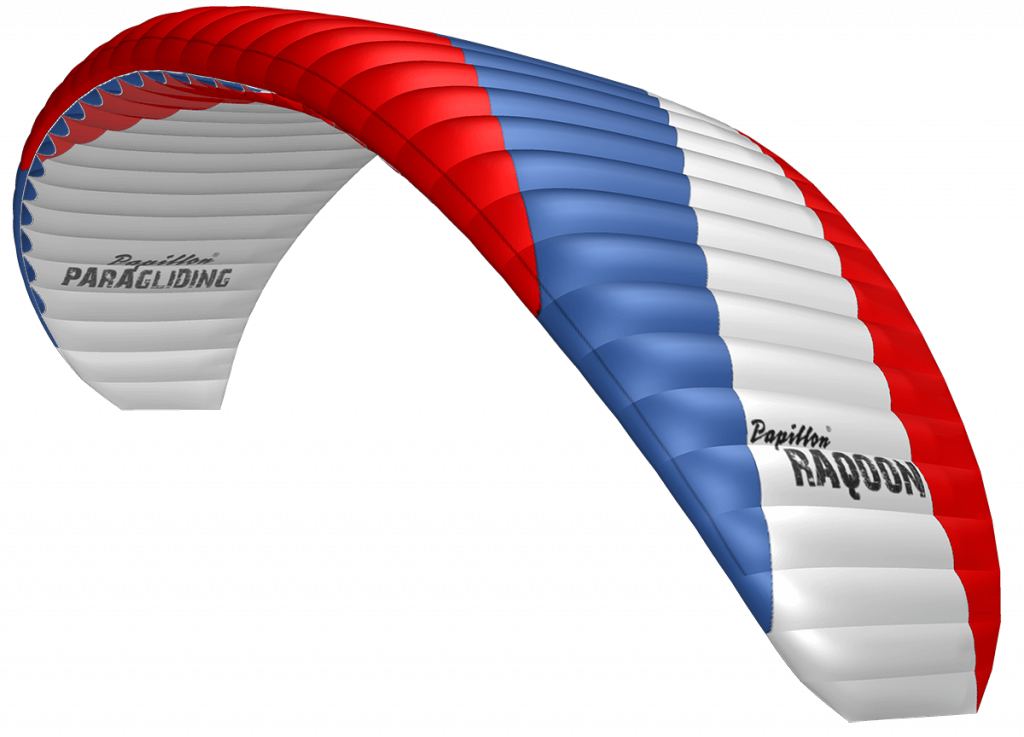

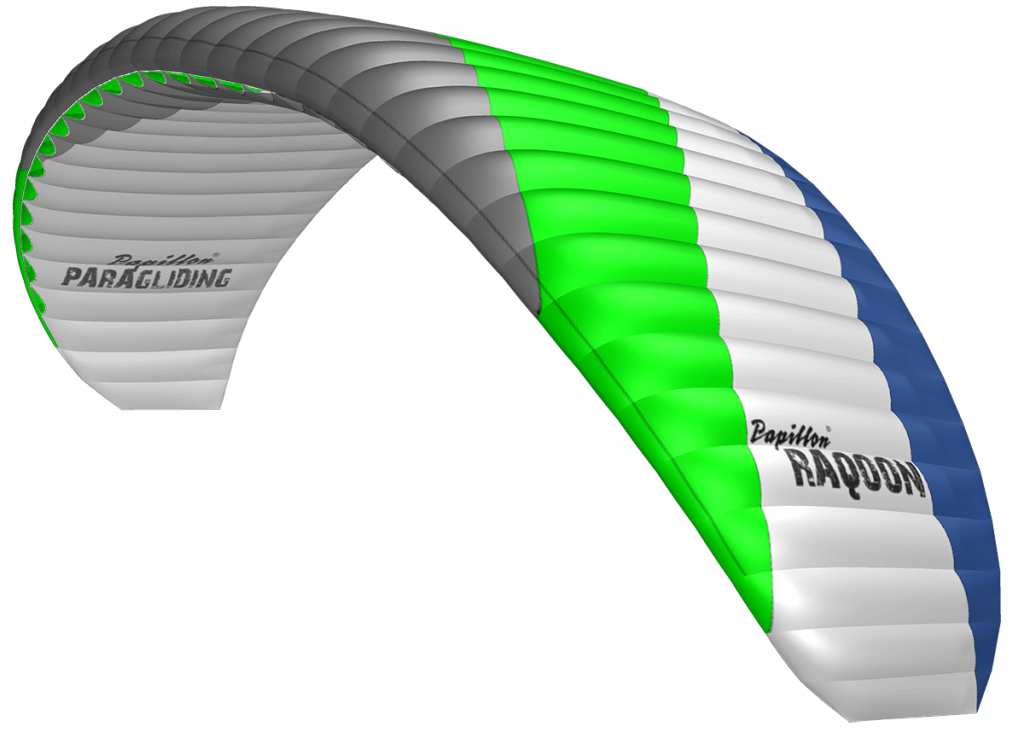

Color:
Technical Details:
| RAQOON | 55 (XS) | 60 (S) | 80 (SM) | 85 (M) | 100 (L) | 120 (XL) |
|---|---|---|---|---|---|---|
| Recommended Takeoff weight [kg] | 60-70 | 60-85 | 80-95 | 85-105 | 100-120 | 120-140 |
| Flat area [m²] | 23 | 25,5 | 28,5 | 30 | 31,5 | 35 |
| Projected area [m²] | 19,119 | 21,197 | 23,691 | 24,938 | 26,184 | 29,51 |
| Flat wingspan [m] | 10,724 | 11,292 | 11,937 | 12,247 | 12,55 | 13,323 |
| Projected wingspan [m] | 8,273 | 8,711 | 9,209 | 9,449 | 9,682 | 10,278 |
| Flat AR | 5 | 5 | 5 | 5 | 5 | 5 |
| Projected AR | 3,58 | 3,58 | 3,58 | 3,58 | 3,58 | 3,58 |
| Chord: center / wingtip [m] | 2,550 / 0,721 | 2,686 / 0,769 | 2,849 m / 0,805 | 2,913 m / 0,823 | 3,008 / 0,850 | 3,186 / 0,901 |
| V-Trim [km/h] | ~ 37-39 | ~ 37-39 | ~ 37-39 | ~ 37-39 | ~ 37-39 | ~ 37-39 |
| V-Max [km/h] | 52 + | 52 + | 52 + | 52 + | 52 + | 52 + |
| Bridle height [m] | 6,649 | 7,001 | 7,401 | 7,593 | 7,781 | 8,26 |
| Nr. of cells | 36 | 36 | 36 | 36 | 36 | 36 |
| Glider weight [kg] | 3,45 | 3,75 | 3,95 | 4,25 | 4,55 | 4,85 |
| Bridle length [m] | 243 | 256 | 269 | 279 | 286 | 304 |
| Line diameter [mm] | 0,95 / 1,2 / 1,65 1,8 / 2,0 |
0,95 / 1,2 / 1,65 1,8 / 2,0 |
0,95 / 1,2 / 1,65 1,8 / 2,0 |
0,95 / 1,2 / 1,65 1,8 / 2,0 |
0,95 / 1,2 / 1,65 1,8 / 2,0 |
0,95 / 1,2 / 1,65 1,8 / 2,0 |
| Speed system / trimmer | Yes / No | Yes / No | Yes / No | Yes / No | Yes / No | Yes / No |
| Certification | EN-A /LTF-A | EN-A /LTF-A | EN-A /LTF-A | EN-A /LTF-A | EN-A /LTF-A | EN-A /LTF-A |
Feautures:
Better Orientation

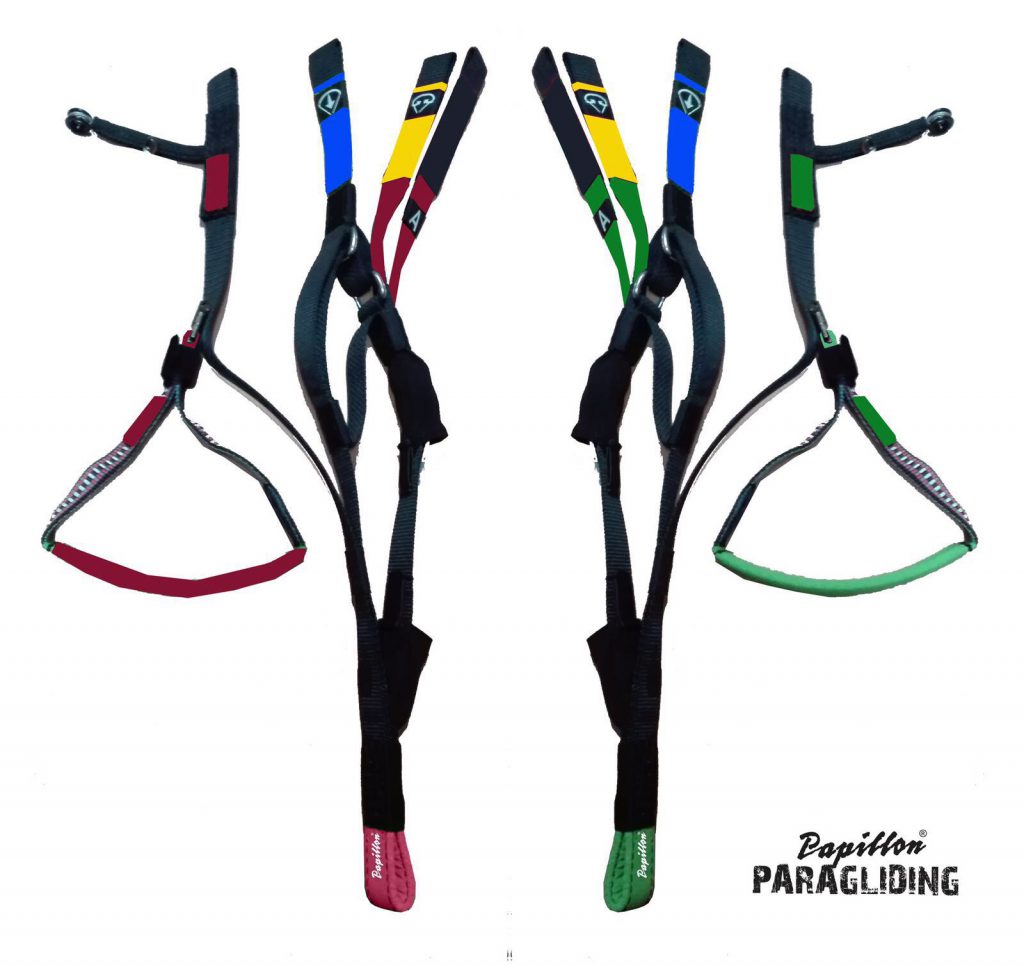

The risers are equipped with the Pilot Assistant (PAS) – colour markings and icons provide a better orientation of the line levels. In addition, the main suspensions
are colour coded for better orientation.
Newest Paragliding Development
- Besides the PPN, the 3D shaping is providing optimized inflow and form stability of the cell opening area.
- Elaborate calculations of the ballooning in combination with the optimized pre-tensioning of the wing provide a balanced pressure distribution and circulation of the profile.
- Mini-ribs at the rear end of the wing give the profile more form fidelity and optimize the aerodynamics additionally, especially when braking.
- The High Pressure Crossport Design (HPCD) provides an ideal aeration of the crossports, which helps to balance the pressure differences on the inside of the wing, and therefore enhances the safety.
